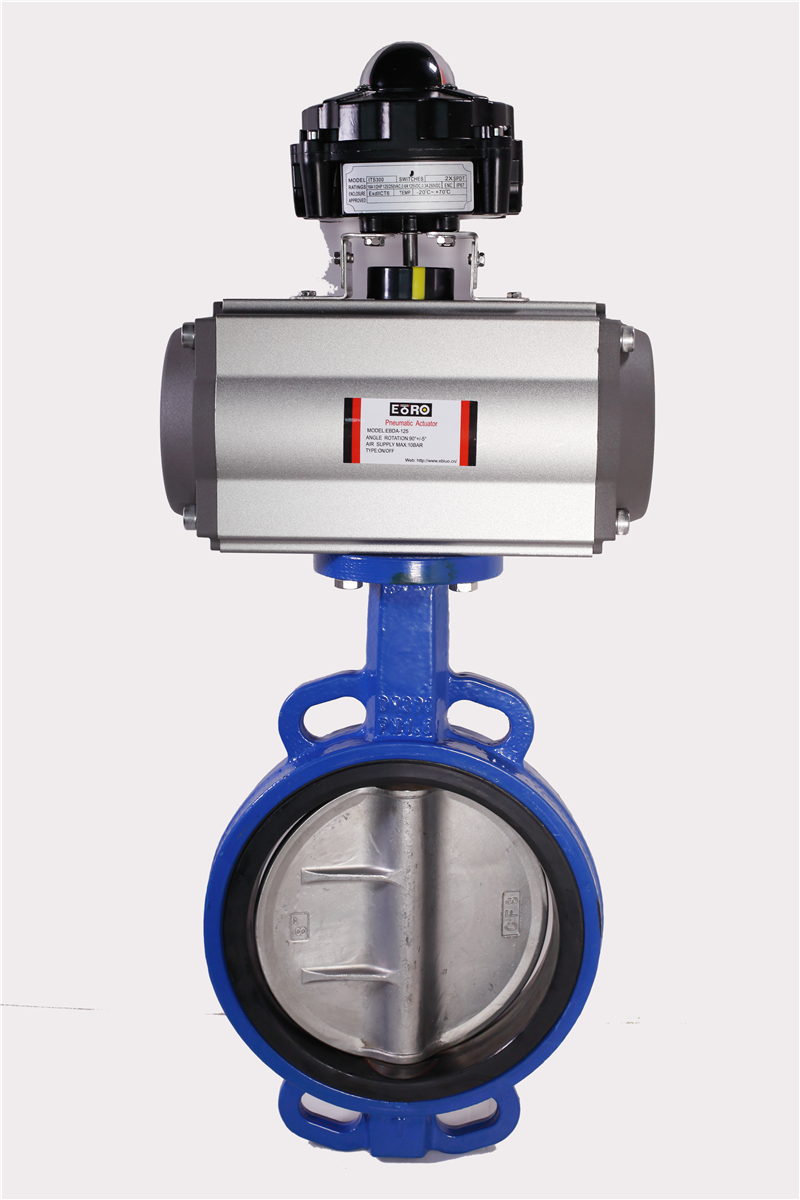

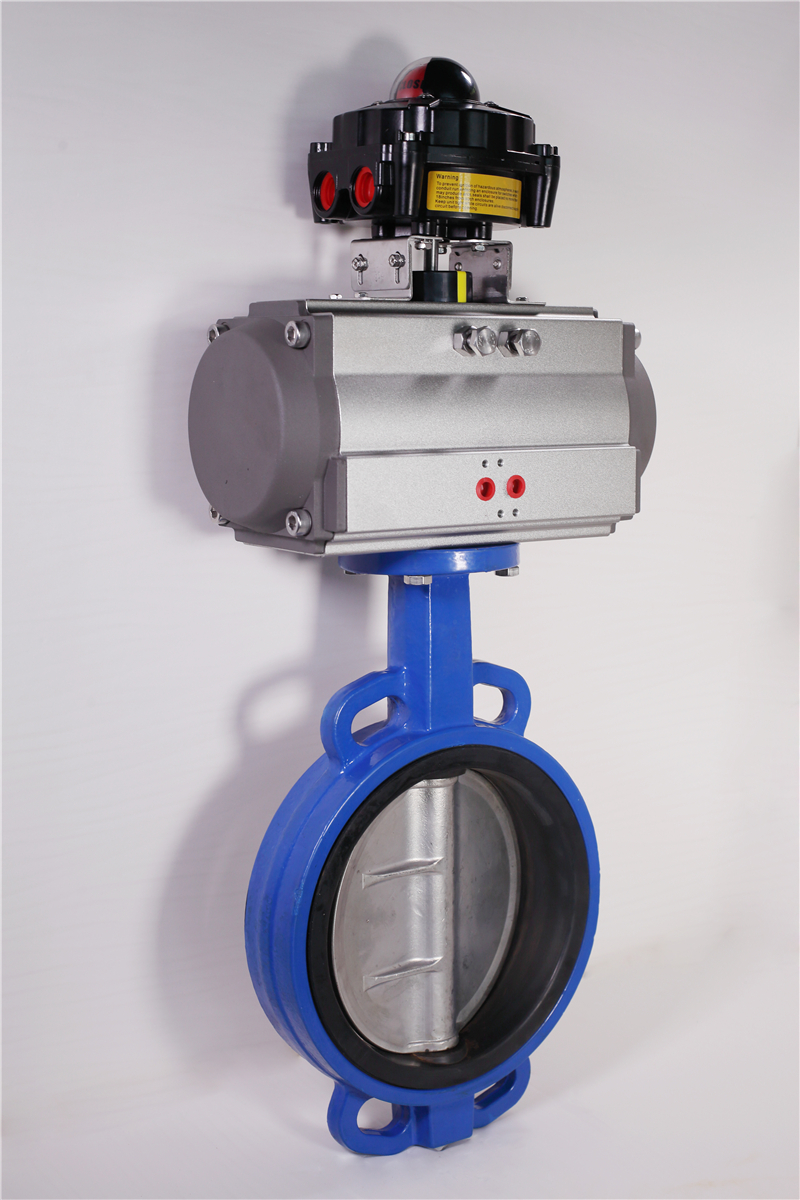

Pneumatic rubber-lined butterfly valve

　　Product model: D671X

　　Nominal diameter: DN50~DN800

　　Nominal pressure: 0.6MPa~1.6MPa

　　Connection method: clip type

　　Material: WCB

　　Working temperature: -20 ° C ~ +120 ° C

　　Applicable medium: water, oil, air

　　Pneumatic actuator: double acting, single acting

　　Uses: Used for medium switch disconnection and flow regulation of water, air, oil, etc.

　　Pneumatic Lining Butterfly Valve Product Overview

　　Zibo Luo's soft-sealed mid-line wafer butterfly valve has a compact structure, easy 90° rotary switch, reliable sealing and long service life. It is widely used in water supply and drainage of water plants, power plants, steel mills, paper making, chemical industry, food and other systems. , used as adjustment and cutoff.

　　Pneumatic rubber-lined butterfly valve features

　　1. The design is novel, reasonable, unique in structure, light in weight, and quick to open and close.

　　2, the operating torque is small, easy to operate, labor-saving and smart.

　　3, can be installed in any location, easy to maintain.

　　4, the seal can be replaced, the sealing performance is reliable to achieve two-way seal zero leakage.

　　5. The sealing material is resistant to aging, corrosion and long service life.

Main technical parameters of pneumatic lining rubber butterfly valve

Pneumatic rubber-lined butterfly valve main parts and materials

Pneumatic rubber-lined butterfly valve implementation standard
